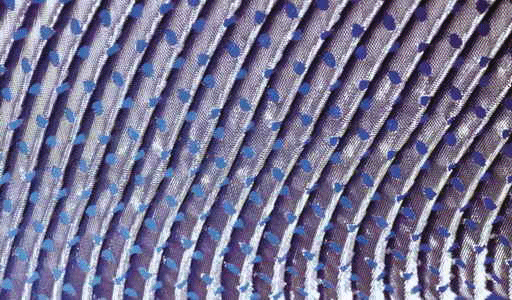

High Capacity Wire Gauze Packing type A+ |
| Packing
Type |
Surface
Area (m2/m3) |
Efficiency
as nr of theo. stages/m (1) |
| A-500
+ |
500 |
4.5
~ 5 (2) |
| A-750
+ |
750 |
8.0
~ 10 (2) |
|
|
|

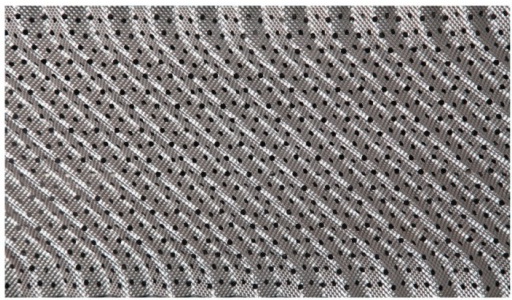

High
Capacity type HC
Metal
Sheet Packing |
|
| Packing
Type |
Surface
Area (m2/m3) |
Efficiency
as nr of theo. stages/m (1) |
| B
-170 HC (RMP S 170 ) |
170 |
1.6 |
| B
-250 HC (RMP S 250) |
250 |
2.6 |
| B
- 350 HC (RMP S 350) |
350 |
3.3 |
| B
- 500 HC (RMP S 500) |
500 |
4.5 |
|
|
|
|
|
|
|
|
|
| |

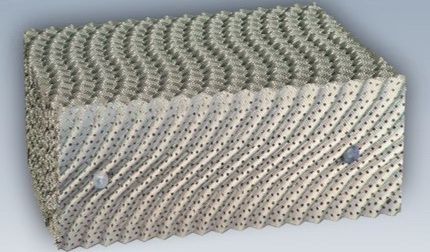

Very High Capacity type SP
Metal
Sheet Packing |
| Packing
Type |
Surface
Area (m2/m3) |
Efficiency
as nr of theo. stages/m (1) |
| RMP
SP 250 |
250
|
2.5
|
| RMP
SP 350 |
350 |
3.2 |
| RMP
SP 500 |
500 |
4.3 |
|
|
|

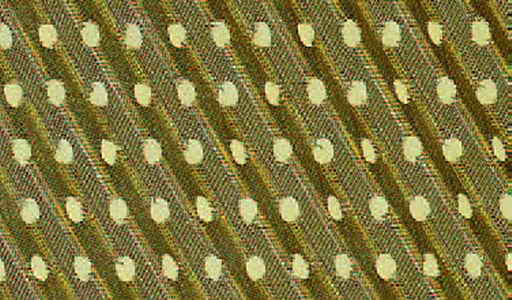

| Standard
Wire Gauze Packing Type A |
|
| Packing
Type |
Surface
Area (m2/m3) |
Efficiency as nr of theo. stages/m (1) |
|
A
- 500
|
500
|
4.5
~5 (2)
|
|
A
- 750
|
750
|
8
~ 10 (2)
|
|
A
- 1000
|
1000
|
15
~ 22 (2)
|
|
A
- 1250
|
1200
|
22
~ 30 (2)
|
|
| |
|
|
|
|
|
|
|
| |

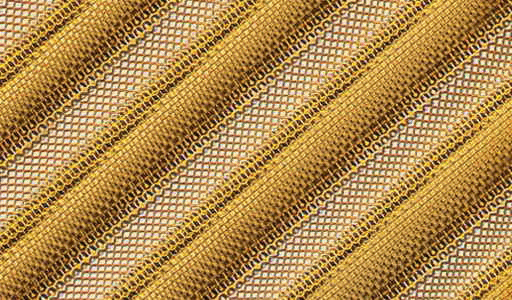

Standard Metal Sheet Packing Type B |
| Packing
Type (3) |
Surface
Area (m2/m3) |
Efficiency
as nr of theo.stages/m (1) |
| B
- 64 (45° ou 60°) |
64 |
0.5 ou 0.4 |
| B
- 90 (45° ou 60°) |
150 |
1.0 ou 0.8 |
| B
- 170 (45° ou 60°) |
200 |
1.4 ou 1.1 |
| B
- 200 (45° ou 60°) |
250 |
1.7 ou 1.3 |
| B-
250 (45° ou 60°) |
350 |
2.3 ou 1.7 |
| B
- 350 (45° ou 60°) |
500 |
2.8 ou 2.1 |
| B
- 500 (45° ou 60°) |
750 |
3.6 ou 2.7 |
|
|
|
|
|
(1)
Based on a test mixture type Chlorobenzene / Ethylbenzene
(2)
Pending on F-Factor
(3)
Other type and surface area upon request
|
|
|
|
|
