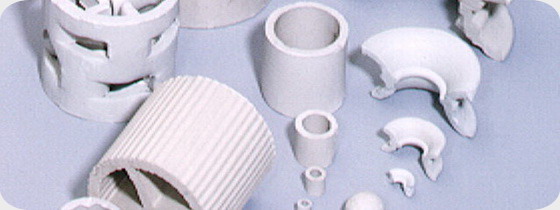

GARNISSAGES VRACS en CERAMIQUE

CERAMIC RANDOM PACKINGS


Type

Dimension

mm

( Od x H x tck)

Bulk Density 

( kg/m3 )



Surface

Area

( m2 / m3 )

Void Ratio

( % )

Packing Factor 

( m-1 )

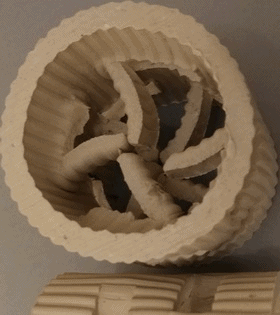

Pall 1"
Ø 25 x H 25 x 3

580

210
73
350

Pall 1.5"

Ø 38 x H 38 x 4

560

165
76
180
Pall 2"
Ø 50 x H 50 x 5

540

130
78 142
Pall 3"
Ø 80 x H 80 x 8
530
80
81 85
Pall 4" (systematic)
Ø 100 x H100 x10
450
55 82 -
Pall

Dimensions (mm)

( Od x H x tck)

( systematic )

Number

(pces /m2)

Bulk Density

( kg/m3 )

Surface  

Area

( m2 / m3 )

Void Ratio

( % )

Approx Number 

( pces / m3 )

Ø 80 x H 80 x 8-9
160

800

106
67 2100

Ø 100 x H 100 x 8-10

100
660
84
73 1050
Ø 120 x H 120 x 9-12
72

780

69
68 610
Ø 150 x H 150 x 12-15
46
640
56
73 320

Ø 200 x H 200 x 15

26
585
41 76 130

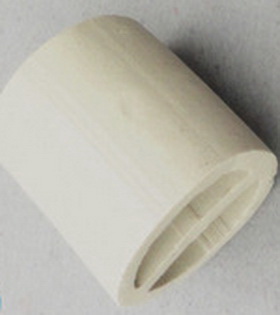

Lessing Simple Partition

Lisse ou Crénelé




Type

Dimension  

mm

( W x L )

Bulk Density 

( kg/m3 )



Surface

Area

( m2 / m3 )



Void Ratio

( % )

Packing Factor

( m-1 )

1/2 "

10 x 20

730

625
70
656

3/4 "

15 x 28

680

335
72
475

1 "

21 x 38

650

260
73
320

1.5 "

32 x 60

580

190
76
170

2 "

42 x 80

580

120
76
131

3 "

62 x 118

550

92
77
72

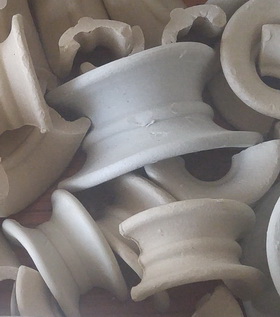

Selles




Type

Dimension

mm

( Od x H x tck)

Bulk Density 

( kg/m3 )



Surface  

Area

( m2 / m3 )



Void Ratio

( % )

Packing Factor 

( m-1 )

5/8"

Ø 16 x H 16 x 2

650

305
73
900

3/4 "

Ø 20 x H 20 x 2.5

640

245
73
836

1 "

Ø 25 x H 25 x 3

600

185
75
520

1.5 "

Ø 38 x H 38 x 4-5

560

123
77
280

2 "

Ø 50 x H 50 x 5-6

550

92
77
214

3 "

Ø 80 x H 80 x 8-9

535

60
77
120

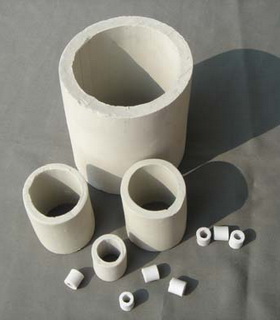

Raschig

Dimensions (mm)

( Od x H x tck)

( systematic )

Number

(pces /m2)

Bulk Density 

( kg/m3 )

Surface

Area

( m2 / m3 )

Void Ratio

( % )

Approx Number

( pces / m3 )

Ø 80 x H 80 x 8-9
160

930

125
61 2100

Ø 100 x H 100 x 8-10

100
770
98
68 1050
Ø 120 x H 120 x 9-12
72

825

80
66 610
Ø 150 x H 150 x 12-15
46
800
65
67 320

Ø 200 x H 200 x 15

26
675
49 72 130

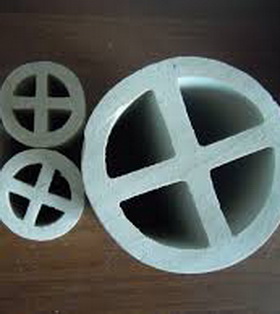

Double Partition

en Croix

Lisse ou Crénelé
